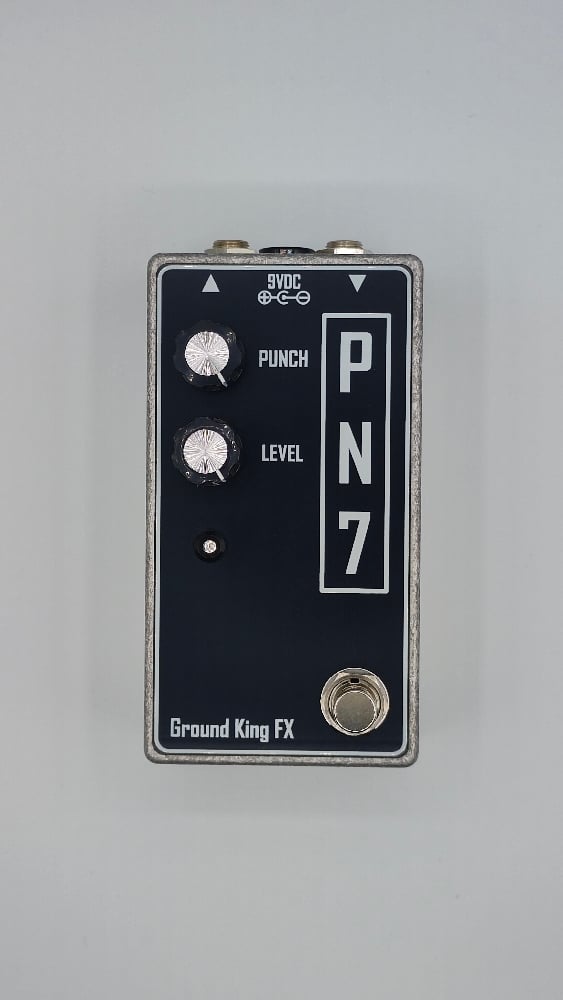

PN7 Black Edition

Booster pedal designed especially for bass guitar. You can use it as a flat volume boost or to boost the upper mids and stand out in the mix. PN7 made in collaboration with Olli "Paajanenae" Paajanen.

PUNCH - boost or cut higher midrange.

Rotating this knob clockwise to boost or counterclockwise to cut.

LEVEL - Controls output level of effected sound.

Rotating this knob clockwise to increases the volume.

SPECIFICATIONS

True bypass. Sturdy soft-clicking GØRVA footswitch.

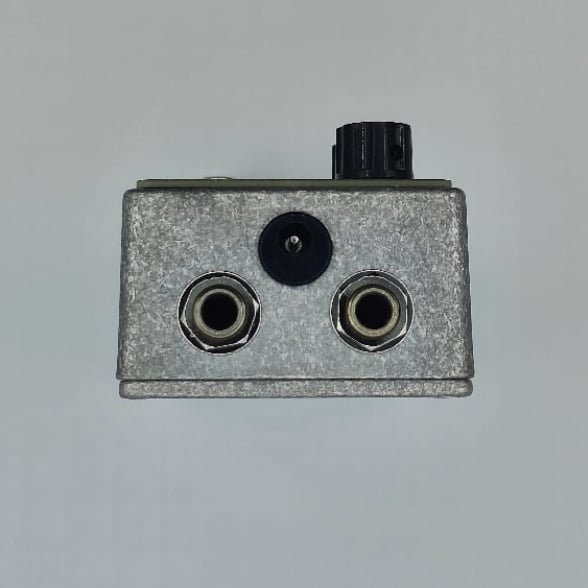

All top jacks.

Dimensions: 64x124x54mm.

Input Impedance: 500K Ohms

Output Impedance: 10K Ohms

Current draw 10mA.

Use only a regulated 9v DC adapter with a centre-negative plug.

Unregulated power suplies or higher voltages may damage your unit,

voiding the warranty.

Handcrafted in Lappeenranta, Finland
