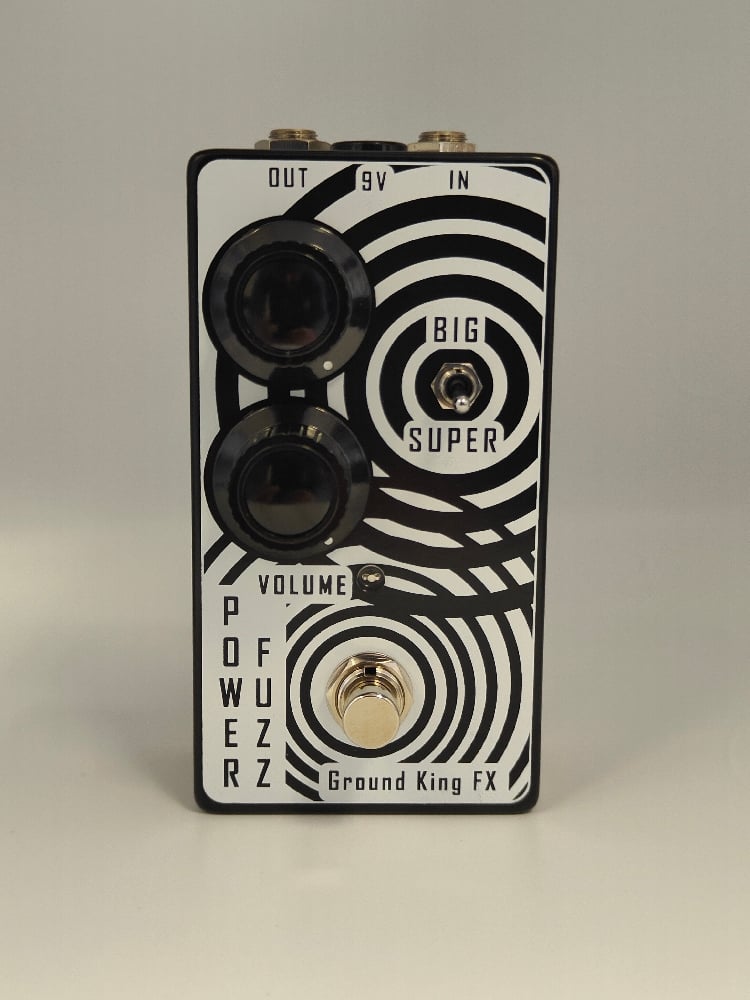

POWER FUZZ (Next batch ready May 25)

Super Fuzz style effect that cleans up with guitar volume.

The mode selector toggle switch selects the fixed Super Fuzz tone stack (scooped mids) or the Civil War Big Muff tone knob.

the full-wave rectification of the circuit produces an upper octave as well as a slight lower octave. This also gives the sound a lot of compression and gives a mild ring modulator effect.

Stands out when played on the upper frets and with a neck pickup.

Volume knob adjusts the sound volume and provides additional gain for the final gain stage.

POWER FUZZ works best with passive pickups, and when the pedal is placed directly after the guitar in the effects chain.

Dimensions

125 x 64 x 57 mm with knobs

Current Draw

20mA

Power

Standard 9 volt DC pedal-specific, transformer-isolated power supply with a 2.1mm negative center barrel.

Built with high quality components, handcrafted in Finland

Demo by Omppu Oinonen @OmppuOinonen

Power Fuzz Demo
